Van Losing Coolant With No Visible Leak: How to Find It

Coolant is not consumed. In a sealed, healthy cooling system the level should stay essentially where you left it. So when a van needs topping up every few weeks and there is no puddle on the drive, the coolant is going somewhere, and the absence of an obvious leak narrows the possibilities rather than ruling out a problem.

This guide works through where coolant hides, in a sensible order, on any modern diesel van.

Applicability

The principles here apply across common UK vans including the Ford Transit and Transit Custom, Vauxhall Vivaro, Renault Trafic, Peugeot Expert, Citroen Dispatch, Toyota Proace, Mercedes-Benz Sprinter and Volkswagen Transporter. Component locations differ considerably between them, so confirm layout for your engine code before dismantling anything.

Safety notes before you start

Coolant is hot and under pressure when the engine is warm. Never open the expansion tank cap or slacken a hose on a hot engine, as escaping steam and coolant can cause severe scalding. Let the system cool fully first.

If you need to run the engine to check the fan or watch temperature, keep hands, tools and clothing clear of the cooling fan and auxiliary belt. A fan can start without warning even with the ignition off on some vehicles. Apply the parking brake, chock the wheels and do not work under a van supported only by a jack.

First, establish how fast you are losing it

Before hunting, quantify the loss. Fill to the correct mark with the engine cold, note the date and mileage, then check again cold at intervals.

• A few millimetres over several months. May be within normal settling and evaporation from the expansion tank, particularly if the system has recently been bled. Keep monitoring rather than dismantling.
• Noticeable drop every few weeks. A genuine leak that needs finding.
• Needing top-up weekly or faster. Something significant. Take this seriously and stop using the van hard until you know what it is.

Where coolant goes when there is no puddle

It is leaking, but only when hot and pressurised

This is the single most common explanation. A hairline crack in a plastic housing, a weeping hose joint or a pinhole in a radiator seam can seal itself when cold and open under pressure and heat. The escaping coolant then lands on hot components and evaporates before it ever reaches the ground.

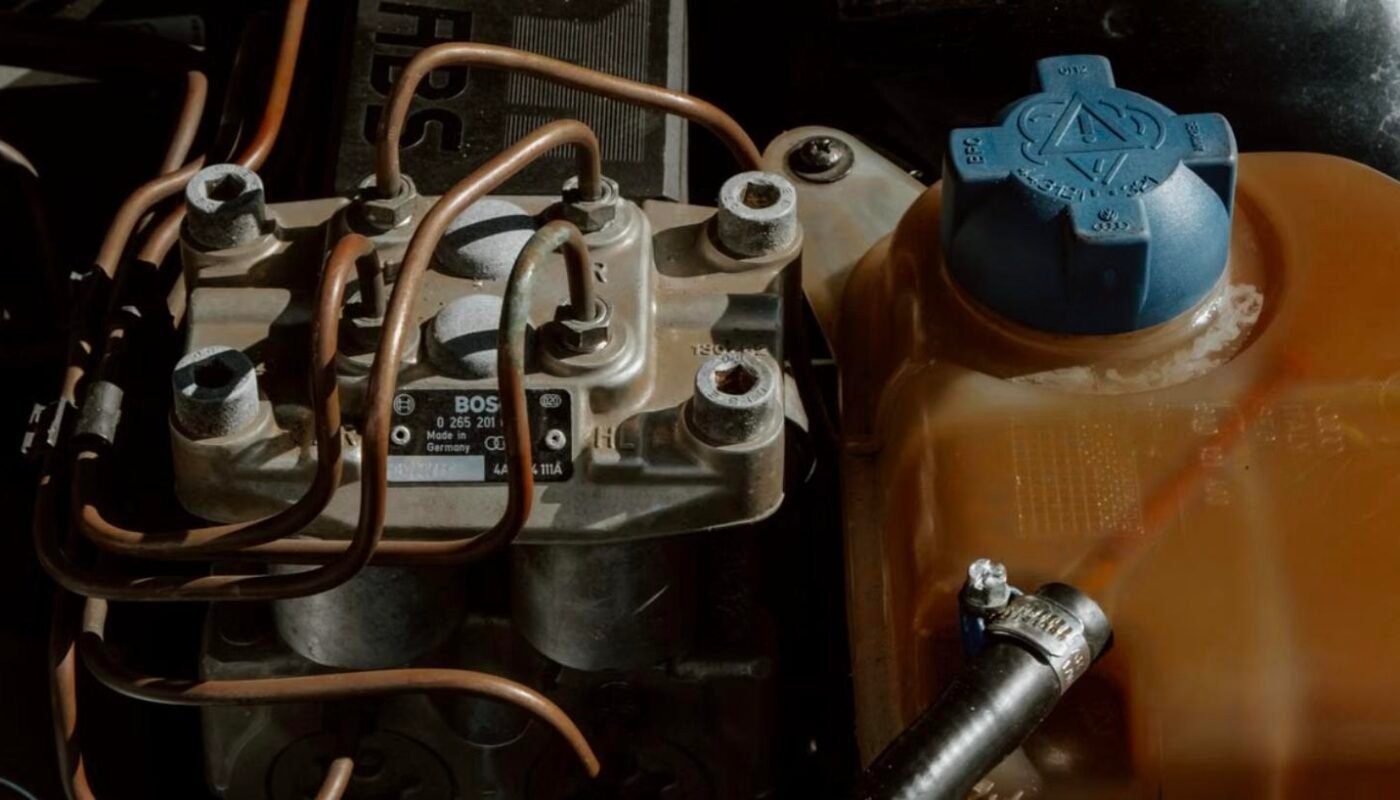

Telltale signs are white, chalky or coloured crusty deposits around joints, housings and hose ends. Dried coolant leaves a residue even when the liquid itself never drips. Inspect with a torch around the thermostat housing, water pump, radiator end tanks, expansion tank seams and every hose connection.

It is going into the cabin

A leaking heater matrix dumps coolant inside the vehicle, not underneath it. Look for a persistent sweet smell, a greasy film that keeps returning on the inside of the windscreen, misting that will not clear, or damp carpet in the passenger footwell. This one is often missed because owners are looking under the bonnet.

It is being burned in the engine

Coolant entering a combustion chamber through a failed head gasket, cracked head or failed EGR cooler leaves as steam. Suspect this if you see persistent white vapour from the exhaust that does not clear once the engine is warm, particularly with a sweet smell. Note that white vapour on a cold damp morning that disappears after a few minutes is just condensation and entirely normal.

Other supporting signs include bubbles in the expansion tank with the engine running, pressure building unusually quickly in the system, or the level rising and falling oddly. Our guide to head gasket symptoms and what mimics them covers the confirming tests.

It is mixing with the oil

Check the dipstick and the underside of the oil filler cap. A creamy, mayonnaise-like emulsion suggests coolant and oil are meeting, though a small amount of pale residue on the filler cap alone is common on vans doing only short journeys and is not by itself proof of a serious fault. Consistent emulsion on the dipstick, a rising oil level, or oil in the coolant is a different matter and needs proper investigation.

It is escaping past the pressure cap

If the cap cannot hold its rated pressure, coolant boils sooner and vents as vapour through the overflow. You lose coolant steadily with no leak anywhere in the system. Caps are inexpensive and a sensible early replacement when the cause is unclear.

It never got in properly

Worth stating plainly: if the loss started right after cooling system work, the most likely explanation is trapped air working its way out over subsequent heat cycles, giving the appearance of a leak. Rebleed the system correctly before assuming a new fault.

Diagnostic sequence

1. Cold visual inspection

Check: Torch and a careful look over every hose, joint, housing and the radiator, top and bottom, looking for staining and crusty residue rather than wet coolant.

Next action: Residue found means you have your answer, or at least the area to concentrate on. Nothing found, move on.

2. Pressure test

Check: Fit a cooling system pressure tester and pump to the pressure marked on the cap, no higher. Leave it and watch the gauge for several minutes.

Next action: If pressure holds steady, external leaks under pressure are unlikely and you should focus on internal loss and the cap. If it drops, work around the engine looking and listening for where it is escaping. This test finds most leaks that only appear when hot.

3. Test the cap separately

Check: Most pressure testers include an adaptor for testing the cap on its own.

Next action: A cap that vents below its rated pressure is a fault. Replace it and re-monitor before going further.

4. Combustion gas test

Check: A chemical block test kit draws vapour from the expansion tank through a fluid that changes colour if combustion gases are present.

Next action: A positive result points strongly at a head gasket, cracked head or failed EGR cooler. A negative result does not entirely exclude these, because a leak that only opens under load may not show at idle, but it is good evidence.

5. UV dye

Check: Add coolant-safe UV dye, drive the van normally for a few days, then inspect with a UV lamp in the dark, including inside the passenger footwell and around the bulkhead.

Next action: Excellent for slow leaks that resist every other method. Dye shows exactly where coolant has travelled.

6. Check the EGR cooler and oil cooler

Check: Both carry coolant and both are common internal leak points on high-mileage diesels. An EGR cooler leak can send coolant straight into the intake or exhaust with no external sign at all.

Next action: Suspect these particularly if you have coolant loss alongside white exhaust vapour but a negative block test, or unexplained emissions faults. See our guide to EGR system faults.

Tools required

• Cooling system pressure tester with correct adaptor, and a cap test adaptor.
• Good torch and an inspection mirror.
• Combustion gas block test kit.
• UV dye and lamp for stubborn cases.
• Correct specification coolant and the bleeding procedure for your engine.

Common mistakes

• Assuming no puddle means no leak. Hot-side leaks evaporate. This is the norm, not the exception.
• Over-pressurising during testing. Never exceed the cap rating. You can turn a weeping joint into a burst hose or split a plastic housing.
• Only checking under the bonnet. Heater matrix leaks are inside the cab.
• Diagnosing a head gasket from white exhaust vapour alone. On a cold morning that is condensation. Confirm with a block test.
• Using stop-leak products as a fix. They can get a van home in an emergency but risk blocking the heater matrix and radiator, converting a small repair into a larger one. Avoid them as a permanent solution.

When to stop and get help

Get a technician involved if the block test is positive, if coolant and oil are mixing, if the loss is rapid enough to affect temperature, or if you have worked through the sequence without finding it. Internal leaks need proper equipment to confirm and are not worth guessing at.

Stop driving the van entirely if the temperature gauge is rising, if you are losing enough coolant to need daily top-ups, or if the heater has gone cold. See our guide to diagnosing overheating properly.

Indicative UK costs

Broad context only, and highly dependent on access on your particular engine. A pressure cap is usually a few pounds. Hoses and clips are typically modest. A radiator or thermostat housing commonly runs into the low hundreds fitted. A heater matrix can be expensive despite a cheap part, because the dashboard often has to come out. Head gasket work is a major expense. Get quotes before committing.

Frequently asked questions

How much coolant loss is normal?

Essentially none. A sealed system in good order should hold its level. Small apparent drops after recent work are usually air escaping rather than loss.

Can I just keep topping it up?

Only as a short-term measure while you arrange diagnosis. A leak that is small today can fail suddenly, and running low risks overheating damage far more expensive than the original repair.

Is it safe to use water instead of coolant?

In a genuine emergency, yes, to get home. Water alone offers no corrosion protection, freezes in winter and boils sooner. Restore the correct coolant mixture as soon as you can.

Why is there residue but the level is fine?

Old residue can remain from a previous leak that has already been repaired, or from a spill during a top-up. Clean the area thoroughly, then re-inspect after a week to see whether it returns.
